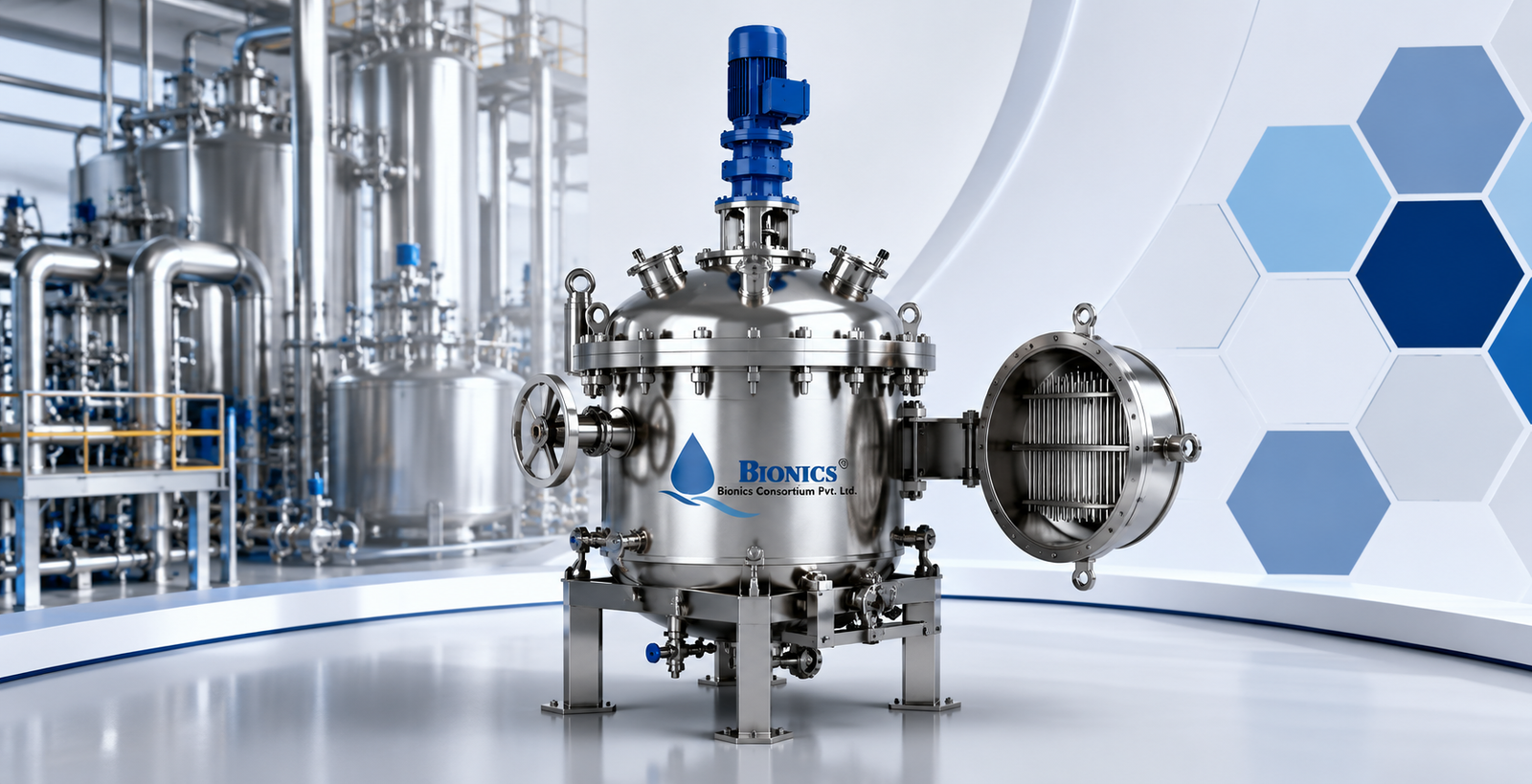

A nutsche filter is an enclosed industrial filtration system used to separate solid particles from liquids with the help of vacuum or pressure. It can perform filtration, filter-cake washing and, in advanced configurations, drying within the same vessel. Nutsche filters are commonly used in pharmaceutical, chemical, biotechnology, food-processing and specialty chemical industries where product purity, safe handling and efficient material recovery are important.
Industrial filtration directly affects product quality, processing time and operating costs. A properly designed filtration system can improve solid recovery, reduce contamination risks and minimise manual material handling.
At Bionicsro we develop industrial filtration solutions in accordance with the process capacity, product characteristics, safety requirements and operating conditions.
A nutsche filter is a batch-operated solid-liquid separation system consisting of an enclosed vessel, filter plate, filter medium, filtrate outlet and discharge arrangement.
During operation, slurry is introduced into the vessel. Pressure or vacuum causes the liquid portion to pass through the filter medium, while solid particles remain on the filtration surface and form a filter cake.
Depending on the equipment configuration, the filter cake can be washed, agitated, dried and discharged without transferring it to multiple machines. This makes the system suitable for valuable, hazardous, toxic or contamination-sensitive materials.
Nutsche filtration generally proceeds as follows: Charging of the slurry The solid/liquid mixture is charged into the closed vessel. Filtration Liquid is passed through the filter medium using vacuum or positive pressure. Cake build-up Solid particles deposit on the filter plate and build up a uniform filter cake.
Cake washing: A washing liquid may be added to remove impurities or recover valuable products.
Drying: In agitated nutsche filter dryer moisture content is reduced using vacuum and controlled heating.
Product discharge: The processed solids are taken out manually or by an automated outlet.
By combining several processing stages in one vessel, requirements for handling, product exposure and total production time can be reduced.
An agitated nutsche filter includes a specially designed agitator that can level, mix, smooth and break the filter cake.
Agitation helps improve washing efficiency by allowing the wash liquid to contact the solids more uniformly. It can also assist with reslurrying, cake drying and product discharge.
This equipment is frequently used in pharmaceutical, chemical, pigment, dye and specialty-material manufacturing.
An agitated nutsche filter dryer combines filtration, washing, agitation and vacuum drying in one enclosed unit.
The agitator helps expose moist cake surfaces during drying, while a jacketed vessel may provide controlled heating. This arrangement can reduce the need to transfer wet products to a separate dryer.
It is particularly useful for pharmaceutical ingredients, chemical intermediates, moisture-sensitive products and high-value materials.
A pressure nutsche filter uses positive gas pressure above the slurry to force liquid through the filtration medium.
It is suitable for applications where vacuum filtration is insufficient or where faster filtration is required. Pressure nutsche filters may also be selected for dense slurries, fine solids and processes requiring a fully enclosed filtration environment.
A vacuum nutsche filter uses negative pressure below the filter plate to draw liquid through the filter medium.
It is commonly considered for products that can be filtered effectively under moderate pressure differences and do not require advanced cake agitation or drying.
A typical nutsche filtration system may include:
The final configuration should be selected according to product behaviour, batch volume, filtration area and industry requirements.
Material selection is important because the vessel remains in direct contact with the process product, cleaning chemicals and operating environment.
Common construction materials include:
SS316L is commonly considered for hygienic and corrosion-sensitive processes. Material selection should comply with applicable ASTM International Standards.
|
Feature |
Nutsche Filter |
Filter Press |
|
Operating system |
Usually enclosed |
Often requires more open handling |
|
Filtration method |
Vacuum or pressure |
Hydraulic pressure |
|
Cake washing |
Controlled and uniform |
Depends on plate design |
|
Drying capability |
Available in dryer models |
Generally requires separate equipment |
|
Operator exposure |
Lower in a closed system |
May be higher during cake removal |
|
Batch handling |
Suitable for contained processing |
Suitable for large-volume filtration |
|
Product discharge |
Manual or automated |
Plate opening and cake removal |
|
Typical use |
High-value or sensitive products |
General industrial sludge and slurry filtration |
The best choice depends on the material, capacity, required containment, moisture target and operating budget.
Before purchasing a nutsche filter, manufacturers should evaluate technical parameters such as:
There is no single standard configuration suitable for every application. Equipment should be designed according to actual process data and operating conditions.
The main benefits are:
Nutsche filters are used for active pharmaceutical ingredients, intermediates, crystals and other products requiring controlled and hygienic handling.
They support catalyst recovery, fine-chemical processing, resin filtration, solvent separation and chemical-intermediate production.
The equipment can be used for pesticide intermediates and other chemical formulations that require enclosed processing.
Agitated systems can assist with repeated washing and removal of unwanted soluble impurities from coloured solids.
Product-compatible systems may be used for food ingredients, additives, extracts and other specialty products that require controlled filtration.
Consider the following factors before finalising the equipment:
A small laboratory or pilot trial may be useful when the product has challenging filtration characteristics.
The routine maintenance procedure protects from deterioration of performance and equipment.
It includes such steps as:
The maintenance plan should be followed.
Bionicsro focuses on providing filtration solutions according to actual industrial processing requirements. Instead of treating every application in the same way, important parameters such as capacity, product compatibility, filtration area, pressure, temperature, material of construction and automation are considered during equipment selection.
Our approach includes:
Selecting an incorrectly sized or unsuitable filter can result in slow filtration, poor cake washing, excessive moisture, product loss and frequent maintenance.
Speak with Bionicsro before finalising your filtration equipment. Share your batch capacity, slurry characteristics, filtration objective, operating pressure, material requirements and desired moisture level with our team.
Our specialists can help you evaluate whether an agitated nutsche filter, agitated nutsche filter dryer, pressure nutsche filter or another filtration system is appropriate for your process.
Contact Bionicsro today for technical consultation, equipment selection support and a customised quotation for your industrial filtration requirement.
A nutsche filter is a batch filtration vessel used to separate solids from liquids under vacuum or pressure. It retains solids over a filter medium while allowing the liquid to pass through.
An agitated nutsche filter contains an agitator that can level, mix, wash, reslurry and assist in discharging the filter cake.
An agitated nutsche filter dryer performs filtration, cake washing, agitation and vacuum drying inside one enclosed vessel.
A pressure nutsche filter applies positive pressure above the slurry. The pressure forces liquid through the filter medium while solids remain on the filter plate.
They are used in pharmaceutical, chemical, biotechnology, agrochemical, food-processing, pigment, dye and specialty-material industries.
A standard model may only perform filtration, but an agitated nutsche filter dryer can reduce cake moisture using vacuum, agitation and controlled heating.
Common materials are SS304, SS316L, Hastelloy, glass coated steel and specific alloys depending on process compatibility.
The nutsche filter offers more closed processing, cake washing and drying choices. In industrial applications, Filter Presses are often selected when significant volumes of filtration are required.
The capacity will be dependent on the volume of the batches, the solid content, the cake thickness, the filtration area, the filtration time and the product characteristics.
