Leak Test Apparatus — Reliable Package Integrity Testing by Bionicsro
A sealed strip of tablets can look perfect and still fail the one job it has — keeping moisture, air, and contamination out. A pinhole in a blister pack, a weak heat-seal on a sachet, a hairline gap in a bottle cap — none of it is visible to the naked eye, and none of it shows up until the product has already degraded on a shelf somewhere. That's the gap a Leak Test Apparatus is built to close.
Package integrity isn't a cosmetic concern, it's a shelf-life concern. A compromised seal lets in moisture that degrades a tablet's potency, oxygen that spoils a liquid formulation, or microbial contamination that turns a safe product into a recalled one. For food, pharmaceutical, and chemical packaging, leak testing is the step that confirms a seal actually does what it's supposed to do, rather than assuming it does because it looks fine.
Bionicsro's Leak Test Apparatus is built around that exact requirement — a straightforward, dependable vacuum-based instrument that exposes sealing defects other inspection methods simply miss, without requiring a complicated setup or a highly trained operator to run it correctly.
What is a Leak Test Apparatus?
A Leak Test Apparatus is a solid-state instrument used to check the integrity of sealed packaging — strips, blisters, sachets, and similar pack formats used across pharmaceutical, food, and chemical industries. Rather than relying on a visual check, it places the sample under a controlled vacuum and observes whether the seal holds.
It goes by a few practical names depending on who's asking for it. Some call it a Vacuum Leak Tester, since vacuum generation is the core of how it works. Others refer to it as a Blister Pack Leak Tester or Strip Packing Leak Detector, since those are the most common sample types it handles. In a QC department, it's often just called the leak test unit — the instrument that runs before a batch of packed product is cleared for release.
Why this matters comes down to one simple fact: a seal that looks intact under normal atmospheric pressure can still have a defect too small to see. Pulling a vacuum around the sample exaggerates that defect enough for it to become detectable, which is exactly the point.
How Does a Leak Test Apparatus Work?
The working principle is refreshingly direct compared to some analytical instruments, but the details still matter for getting consistent results.

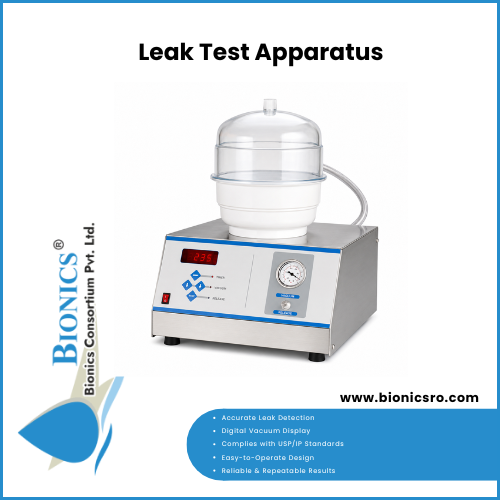

Test samples — strips, blisters, or sachets — are placed inside a polycarbonate desiccator housing, usually after being immersed in a colored dye solution such as methylene blue. A compact vacuum pump then draws down the pressure inside the desiccator to a pre-set level, monitored through a vacuum gauge on the front panel. A control valve isolates the desiccator from the vacuum source once the target level is reached, and the vacuum is held for a programmable hold time.
While the vacuum is held, any defect in the seal — however small — allows air trapped inside the package to escape, and in turn allows the dye solution to be drawn in through that same defect. Once the hold time elapses and the vacuum is released, the sample is inspected. A pack with an intact seal keeps its shape and stays clean. A pack with a compromised seal either loses its shape under vacuum or shows dye penetration once removed, and both are unambiguous signs of failure.
Two things decide whether this test is repeatable from run to run. First, vacuum stability — the pump and control valve need to hold the set vacuum level within a tight tolerance for the whole duration, not just reach it momentarily. Second, hold time accuracy — a defect that would show up after 60 seconds under vacuum might go unnoticed at 20 seconds, so a programmable, precisely timed hold matters more than it might seem at first glance.
Why Leak Testing Matters
Package integrity sits upstream of nearly everything else a product is supposed to deliver. Product quality depends on the seal doing its job over the full shelf life, not just at the moment of packing. Manufacturing consistency matters too — a sealing machine that's slightly out of adjustment can pass most packs while quietly failing a percentage of them, and leak testing is what catches that drift before it reaches distribution.
Regulatory compliance is a major driver in pharmaceutical applications, where package integrity testing is often a documented requirement for strip and blister-packed products, tied directly to shelf-life claims and stability data.This works in exactly the same way for sachets and pouches, where any defective seal will cause spoilage well before the expiry date. The same method applies to chemical and industrial packaging to be certain that the seal is not going to allow leaks during storage or transportation for reasons of both loss and safety.
Where This Equipment Is Applied
Pharmaceutical packaging line testing of strip packs, blisters and sachets
- Food processing facilities testing the seal quality of pouches and sachets
- Chemical and industrial packaging facilities ensuring that there are no leaks from the seals
- Contract packaging operations for testing seal quality of batches
- Quality control laboratories for release testing of packaged products
- Packaging R&D for seal testing of new seal designs
- Shelf-life and stability studies
- Benefits of Using Leak Testing Machine
A good leak tester will ensure that any defect in sealing is identified before the batch is dispatched, which results in lower cost of recalls and returns.
Because the test method itself is simple — vacuum, hold, release, inspect — results are repeatable across operators and shifts without a lot of interpretation involved.
The programmable hold time means the same test conditions get applied to every batch, so results from one week can be genuinely compared to results from another. Operation itself is straightforward: soft-touch controls and a clear digital display mean an operator doesn't need extensive training to run the test correctly. And because the core mechanism has few moving parts to go wrong, a well-built unit stays reliable for years of daily QC use, which is exactly what a busy packaging line needs from its inspection equipment.
Technical Specifications
|
Specification
|
Typical Range / Detail
|
|
Vacuum Range
|
150 – 650 mm of Hg
|
|
Vacuum Setting
|
Stabilizes at values below 400 mm Hg within ±10 mm Hg, in around 30 seconds
|
|
Desiccator Size
|
6", 10", or 12" (specify at time of order)
|
|
Display
|
4-digit seven-segment bright red LED
|
|
Keyboard
|
Soft-touch keys
|
|
Hold Time
|
1 – 9999 seconds, programmable
|
|
Power Supply
|
230V ±10% AC, 50Hz, 10W
|
|
Weight
|
Approx. 13 kg
|
|
Housing
|
MS body with powder coating (SS body available on request)
|
|
Accessories
|
Vacuum pump, polycarbonate desiccator with connecting tubes, operation manual
|
When selecting a Leak Test Apparatus, desiccator size should match your actual sample dimensions first — a unit sized for small blister strips won't comfortably handle larger sachets or bottles. Vacuum stability and hold-time range matter just as much, since a test protocol that calls for extended hold times needs an instrument that holds vacuum reliably over that whole window without drift. Housing material is worth considering too, since pharmaceutical environments often call for stainless steel construction over standard powder-coated MS bodies.
Compliance and Testing Considerations
Leak testing for pharmaceutical and food packaging is typically carried out in line with internal quality protocols and pharmacopoeial guidance on container-closure integrity, alongside general industrial packaging standards that call for vacuum-based seal verification. Consistent, documented testing matters because package integrity data often feeds directly into shelf-life justification and regulatory submissions — a result that isn't reproducible across operators or instruments won't hold up under audit scrutiny.
Why Choose Bionicsro
Bionicsro builds its Leak Test Apparatus around dependable, everyday performance rather than unnecessary complexity. The vacuum pump and control valve are selected for consistent performance across thousands of test cycles, and the desiccator housing is built to sustain vacuum reliably over extended hold times without seal degradation. Every unit is checked before dispatch to confirm vacuum stability and timing accuracy match specification.
Beyond the instrument itself, Bionicsro backs its Leak Test Apparatus with responsive customer support, ready availability of desiccators and spares in different sizes, and installation guidance so a packaging or QC line isn't left figuring out setup on its own.
What Makes Bionicsro Different
Plenty of leak testers on the market look similar on a spec sheet — a vacuum pump, a gauge, a desiccator. The difference shows up in daily use: how consistently the vacuum holds at the set point, how long the pump lasts under continuous cycling, and how well the desiccator housing tolerates repeated handling without cracking or losing its seal. Bionicsro focuses on getting those fundamentals right rather than adding features that don't affect test reliability, backed by build quality and support that keep the instrument running accurately for years, not just for the warranty period.
Request a Leak Test Apparatus Quote
If your packaging line or QC lab needs dependable leak testing for strips, blisters, sachets, or sealed containers, Bionicsro is ready to help. Reach out for a detailed quotation, desiccator sizing guidance, or technical specifications tailored to your sample type and testing volume.
