Ask five people in a materials lab what a compression testing machine does and you'll probably get five slightly different answers. Some say it crushes concrete cubes. Others use one to squeeze foam, test a brick, or check how a carton holds up under a stack. They're all right, because the machine does one basic thing: it pushes on a specimen with a controlled force and records how the material responds.
What changes from job to job is the material, the size of the specimen and the standard being followed. This guide explains how these machines work, the different types on the market, and what to check before you buy one.
Compression testing and compressive strength: not quite the same thing
The two terms get mixed up constantly, so it's worth separating them.
Compression testing is the act of loading a specimen in compression. The test might stop at a chosen load, at a set amount of squashing, or when the specimen fails.
Compressive strength is one result that a compression test can give you: the highest stress the material bears before it fails, worked out as peak load divided by loaded area.
So a compression testing machine is the equipment, and compressive strength is one of the things it can measure. Depending on the method, you might also record the load at a given deformation, or watch how the specimen behaves as it's squeezed.
How the machine works
A specimen sits between two flat steel plates, called platens. One stays still while the other moves toward it, and the specimen gets squeezed in between. The machine records the force as it rises and keeps the peak value.
Behind that simple picture, four things decide whether the result is any good:
- Alignment. If the specimen isn't centred, one side takes more load than the other, and the specimen tends to fail early.
- Loading rate. Materials often show different strength at different speeds, so the rate is set by the test method and needs to stay steady.
- Platen condition. Worn, scratched or dirty platens spread the load unevenly.
- Specimen preparation. Flat, parallel faces and proper curing or conditioning make a big difference.
Get these four right and the machine mostly takes care of the rest.
Types of compression testing machines
Machines differ in how the load is generated and controlled, and this affects both price and consistency.
Manual hydraulic. The operator raises the load by working a hand pump or valve and watches a dial or gauge. They're simple and low-cost, but the loading rate depends on the person running the test.
Motorised. An electric pump builds the load, so the operator no longer has to pump by hand. The loading is smoother, though the rate is still adjusted by hand.
Digital and automatic. The machine controls the loading rate itself, usually following a rate you set, and shows peak load on a digital display. Some record the results or connect to a computer. These give the best repeatability and suit labs that test many specimens every day.
Frames also come in different builds. Two-column and four-column frames are both common, and a stiff frame matters because a flexing frame stores energy and can make a specimen fail more violently.
Where it gets used
Concrete. Cubes and cylinders are tested to confirm they meet the specified strength grade. This is the biggest single use.
Cement and cement products. Mortar cubes and cement-based products are tested to compare batches, brands and formulations.
Bricks and blocks. Take a brick with a 230 mm by 110 mm face. That's 25,300 mm² of loaded area, so if it's rated at 10 MPa it should carry about 253 kN before failing. Machines for bricks and blocks usually have a lower capacity than those for concrete, but the platens have to fit the units being tested.
Stone. Natural and manufactured stone is tested when load-bearing performance matters.
R&D. Universities and product developers use compression tests to see whether a new mix, an additive or a treatment has helped.

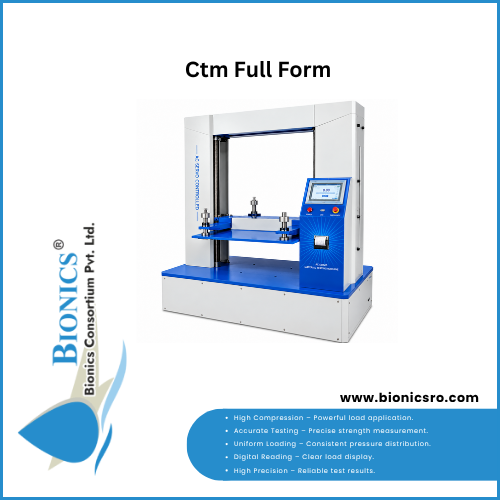

Compression tests aren't limited to construction, either. Foams, rubber, plastics and packaging like corrugated boxes are commonly tested in compression too, usually on a universal testing machine set up for that mode, or on a purpose-built compression tester.
Choosing a machine
Work backwards from what you'll actually test.
- Capacity. Estimate the largest load you expect, then pick a machine whose range covers it comfortably. As a rough guide, a 1,000 kN machine often suits bricks and blocks, and a 2,000 kN one is common for concrete cubes. Very high-strength concrete may call for 3,000 kN. Avoid buying a machine so large that your typical tests use only a sliver of its range, since accuracy is best in the middle of the scale.
- Platen size and space. Check that the platens are big enough for your largest specimen, and that there's enough gap between them for taller ones.
- Control type. Think about how many specimens you test and how consistent you need to be. Automatic control is worth it for busy labs.
- Accuracy and calibration. Ask about the accuracy class and how calibration is done. Machines used for concrete testing in India are typically expected to meet IS 14858, and load verification is commonly done against ISO 7500-1 or a similar standard.
- Accessories. Bring up cylinder fixtures, brick platens and safety guards early, so you're not caught out later.
- Support. A machine is only useful when it's working. Find out about servicing, spares and calibration help before you commit.
Using it for quality control
In a plant, compression testing turns into a routine. Samples are taken from each batch, prepared the same way and tested, and the peak loads are compared with your acceptance limits.
The value shows up when something shifts. If results begin to drift downward, you have an early clue that something changed: cement quality, water content, aggregate grading, curing or firing conditions for bricks. Tracking results over weeks and months also shows trends that individual tests can hide.
Safety on the test floor
Specimens under load can fail without warning. Fragments may fly, and the energy released can be surprising, especially with high-strength material. Use the guard or cage that comes with the machine, keep people clear while loading, and make sure the specimen is stable before starting. Only trained people should operate the machine, and hoses, seals, platens and the frame should be checked regularly.
Working with Bionics Consortium
Bionics Consortium supplies laboratory and testing equipment for research, industrial testing and quality control. If you're buying your first compression tester or replacing an older one, our team can go through your materials, specimen sizes and expected loads and suggest a configuration that suits them.
Final thoughts
A compression testing machine is easy to understand and hard to get the most from. The equipment matters, but so do the specimens, the loading rate and the routine around them. Choose a capacity and control type that fit your real workload, look after the machine, and test the same way every time. Do that and the results become something you can act on.
