Walk onto any construction site and you'll find concrete cubes sitting in curing tanks with labels on them. A few weeks later they get carried into a lab, placed under a press and crushed. It looks brutal, but it's how the industry finds out whether a batch of concrete is strong enough to hold up a building. The machine doing the crushing is a compressive strength testing machine, sometimes called a compression testing machine or CTM.
The idea is easy to state. You push on a specimen until it fails, and you note the highest load it carried. That one number tells you a great deal about the quality of the material and whether it's safe to use.
What compressive strength means
Compressive strength is a material's ability to resist being squashed. Materials like concrete, brick and stone are much better at carrying compression than tension, which is why they're used in walls, columns and foundations.
The calculation is short:
Compressive strength = maximum load ÷ cross-sectional area
Results are usually given in MPa, which is the same as N/mm². As an example, a standard 150 mm concrete cube has a loaded area of 22,500 mm². If it fails at 900 kN, the strength is 900,000 N ÷ 22,500 mm², or 40 MPa.
How the machine works

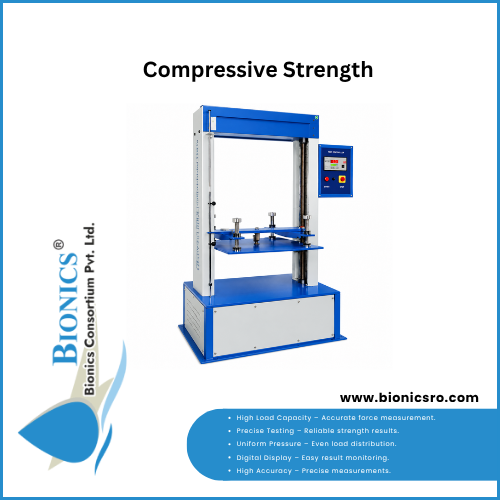

The specimen sits between two hardened steel platens. One platen is fixed and the other moves, driven by a hydraulic system or, in more modern setups, an electromechanical drive. The load goes up at a controlled rate while a load cell or pressure transducer records the force. When the specimen can't carry any more, the machine holds the peak value and you read it off.
Three details matter more than they first seem to:
- Centring. The specimen has to be placed in the middle of the platen. Even a little off-centre can put uneven stress on it and bring down the result.
- Loading rate. Faster loading generally gives a higher reading, so standards set the rate. For concrete cubes tested to IS 516, for instance, the load is applied at about 14 N/mm² per minute. ASTM C39 for cylinders specifies a rate in MPa per second instead.
- Platen contact. Many machines have a spherical seat on the upper platen so it can tilt slightly and sit flat on the specimen, which spreads the load more evenly.
The exact specimen size, procedure and calculation always come from whichever standard you're working to.
Why labs and manufacturers test it
Nobody wants to find out a material is too weak after it has been built into something. Compressive testing gives an early answer. It lets producers and labs:
- Confirm that concrete has reached its target strength grade
- Compare one production batch with another
- Judge whether a new mix or a change of cement or aggregate helps or hurts
- Catch problems in curing, water content or raw materials
- Provide test evidence to consultants and clients
- Support research on new materials
Concrete is generally tested at set ages, commonly 7 days for an early indication and 28 days as the main acceptance figure. A weak 7-day result is often the first warning that something's gone wrong.
What gets tested
Concrete. Cubes (150 mm is the usual size in India and Europe) or cylinders (150 mm by 300 mm is common under ASTM). This is the most frequent use by far. Results are compared with the strength grade specified for the job.
Cement and mortar. Cement is normally tested as mortar cubes. In India, for example, the 70.6 mm cube in the IS 4031 procedure is standard. The results help compare cement brands, batches and formulations.
Bricks and blocks. Clay bricks, fly ash bricks, concrete blocks and other masonry units are tested to check they can bear the loads they'll see in a wall. Standards such as IS 3495 and ASTM C67 cover bricks. Blocks may need larger platens or extra fixtures.
Stone. Natural and manufactured stone is sometimes tested where its load-bearing performance matters, for example in cladding, flooring or aggregates.
Research work. Universities and R&D labs compress new mixes, recycled materials or treated samples to see whether a change made them stronger.
Getting the sample right
The machine gets the blame when a result looks odd, but the cause is very often in the specimen. A few common culprits:
- Uneven top or bottom faces. If a cylinder's ends aren't flat, load concentrates on high spots. That's why cylinders are capped or ground before testing.
- Wrong curing. Concrete cubes that dried out or sat in the wrong conditions will read low, and it isn't the concrete's fault.
- Wrong size or shape. Strength results differ between cubes and cylinders, so you can't swap one for the other without conversion.
- Poor positioning. A specimen tested crooked will often fail early.
Follow the preparation steps in your test method and treat every specimen the same way, and your results become far easier to trust and repeat.
Choosing a machine
Start with the material and work backwards to the specs.
- Load capacity. A 150 mm concrete cube at 60 MPa needs about 1,350 kN to fail, and stronger grades need more. Many concrete labs use 2,000 kN machines, while some choose 3,000 kN for extra headroom. Bricks and blocks generally need less. Pick a capacity so your usual tests fall in the middle of the range, not at the very top.
- Platen size and daylight. Large blocks and tall specimens need enough space between platens. Check this if you'll test more than cubes.
- Loading control. A machine that controls the loading rate automatically gives more consistent results than one that relies on the operator turning a valve by hand.
- Display and data. Digital readouts, peak-hold and data output save time and reduce transcription errors, which matters when you're testing dozens of specimens a day.
- Accuracy and calibration. Look at the accuracy class and how easy it is to calibrate. Load readings must be verified regularly for the results to hold weight with clients and auditors.
- Accessories. Extra platens, cylinder inserts, brick fixtures and safety cages let one machine handle several jobs.
If you plan to test varied materials, ask about those accessories at the start instead of adding them later.
Compressive testing in day-to-day quality control
For a ready-mix plant, precast factory or brick works, testing is a routine. Samples from each batch are cast, cured and tested, and the numbers are logged against specification limits.
When a batch falls short, the record gives you a place to start. It could be a change in cement quality, too much water, poor aggregate grading or a curing problem. Catching that at the bench is far cheaper than finding out later in the field.
A word on safety
A compression machine stores a lot of energy, and specimens can fail suddenly, sometimes throwing fragments. Use the protective guard or safety cage, keep hands and faces clear during loading, make sure the specimen sits securely, and only let trained operators run the machine. Regular inspection of hoses, seals, platens and the frame keeps it reliable and safe.
Working with Bionics Consortium
Bionics Consortium supplies laboratory and testing equipment for research, industrial testing and quality control. If you're setting up a materials lab or replacing an older press, our team can go through your specimen types, expected loads and test standards with you and recommend a suitable configuration.
Final thoughts
A compressive strength testing machine does a simple job: it finds out how much load a material can carry before it fails. What makes the result worth having is the care around it, meaning the right capacity, well-prepared specimens, a controlled loading rate and a consistent routine. Get those right and you have data you can rely on for quality control, client reports and research.
