Pick up a sheet of office paper and then a sheet of cardstock. You can feel the difference straight away, and GSM is the number that puts a figure on it. It stands for grams per square meter, and it's the first thing most buyers, printers and lab technicians ask about when they talk about paper, fabric or any flat sheet material.
Here's a quick sense of scale. Ordinary copier paper is usually around 75 to 80 GSM. A business card sits near 300. A plain cotton T-shirt fabric lands somewhere in the 140 to 180 range. Same unit, very different materials.
One thing trips people up, so let's get it out of the way. GSM is weight over area. It says nothing directly about thickness, strength or density. A fluffy, open sheet and a tightly pressed one can carry the same GSM and behave nothing alike.
What the number actually means
Cut a piece of material so it covers exactly one square meter, put it on a scale, and read the grams. That's the GSM. If it reads 200 g, you have a 200 GSM material.
Nobody cuts a full square meter in practice, of course. You take a smaller piece with a known area, weigh it, and scale up:
GSM = weight of sample in grams ÷ area of sample in square meters
So a 100 cm² sample (0.01 m²) that weighs 1.5 g works out to 150 GSM. Simple maths, but the result is only as good as your cutting and your weighing, and that's where most errors creep in.
Why labs and factories keep checking it
Weight per area drives a lot of things that customers notice: how a sheet feels, how it runs through a machine, how much it costs per thousand pieces, even how much it costs to ship. If a paper mill drifts a few grams off target, somebody downstream will notice, either in the print quality or on the invoice.
That's why quality teams check GSM at several points. Raw material comes in, so they check it. A batch finishes, so they check that too. When two runs look different and nobody can say why, GSM is often the quickest way to find out. It also catches the slow, quiet problems, like a coating weight creeping up over a shift, which would otherwise cost real money in wasted material.
Paper, board and packaging
In paper and packaging, GSM is more or less the language of the trade. Buyers order by it, and mills promise it. A carton maker might need a board at a particular weight so the finished box holds up in stacking, while a label printer cares because it changes how the sheet feeds and cuts.
The usual approach is to take samples from across the width of a roll, or from several sheets in a lot, and measure each one. Testing a single piece tells you very little. The spread across samples is what shows whether the process is stable. Paper labs commonly follow ISO 536 for this kind of grammage testing.
Textiles and fabrics
For fabric, weight changes almost everything about how the cloth is used. A light knit breathes and drapes. A heavy twill is stiffer, warmer and lasts longer under rough handling. Designers, garment makers and buyers all use GSM to compare fabrics that otherwise look alike on a swatch card.
It also helps a mill keep its output honest. If a customer approved a 180 GSM fabric, then 165 GSM arriving in the next shipment is a problem, even when the colour and hand feel seem close. Textile labs often work to ASTM D3776 or similar standards when they measure mass per unit area.
How to measure it properly
The method is straightforward. What matters is doing it the same way every time.
- Take a sample that truly represents the material. Avoid the very edge of a roll and any damaged spots.
- Cut it to a fixed, known area. Many labs use a round GSM cutter that stamps out a 100 cm² disc, which removes the need to measure sides with a ruler.
- Weigh it on a balance that's accurate enough for the sample size.
- Convert the weight to grams per square meter.
Room conditions matter more than people expect. Paper and many textiles soak up moisture from the air, so a sample that sat in a humid store room will read heavier than one that was conditioned first. Comparing results is only fair when the samples were handled the same way.

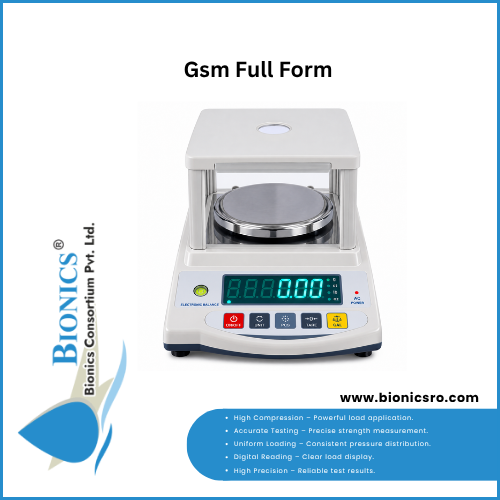

A dedicated GSM tester, which usually pairs a sample cutter with a precision balance, takes out most of the manual work. Less cutting by hand and less arithmetic means fewer mistakes, and results from different operators end up much closer together.
Where GSM testing gets used
Paper mills and converters use it daily. Packaging and carton plants use it on boards and sheets. Textile mills and garment exporters use it on fabric. Nonwoven manufacturers, who make things like filtration media and hygiene products, watch it closely because the weight of a nonwoven web affects how it performs. Printers use it to confirm they were sent the paper they ordered. And plenty of independent testing labs run it as a routine part of incoming inspection.
GSM is not thickness
It's worth repeating, because it causes real confusion. Thickness is the distance from one face of the material to the other, measured in microns or millimetres. GSM is mass per area.
Take two papers with the same GSM. One is bulky and lightly pressed, the other thin and dense. They weigh the same per square meter but feel different, stack differently and print differently. If your application depends on both stiffness and weight, measure both, and the two numbers together will tell you a lot more than either one alone.
Picking a GSM tester
Start with your material. Paper, board, thin film and heavy fabric don't all suit the same setup. Think about the weight range you expect, since a balance that's ideal for tissue paper may be a poor match for thick board. Then consider how many samples you run in a day. A lab that tests ten pieces a week has different needs from a mill line checking hundreds.
Also ask practical questions. How easy is the cutter to use and to keep sharp? Is the balance stable and simple to calibrate? Will the supplier still be around to help in three years? A cheap instrument that gives inconsistent readings costs more in the long run than a solid one that doesn't.
Working with Bionics Consortium
Bionics Consortium supplies laboratory and testing equipment to quality-control teams, research labs and industrial users. If you're setting up GSM testing, or replacing an older setup, our team can go through your material, weight range and sample volume with you and suggest an instrument that suits the work.
Wrapping up
GSM is a small number that says a lot. It tells you how much material you're really getting, whether one batch matches the last, and whether a product meets its spec before it ever reaches a customer. Measuring it well comes down to good sampling, careful weighing and a routine you repeat the same way each time. Get those right, and the right tester makes the whole job faster and far easier to trust.
Looking for a GSM tester for your lab or production line? Get in touch with Bionics Consortium with your material details and testing requirements, and we'll help you find the right fit.
