Every product gets pulled, stretched or tugged at some point. A plastic film gets dragged off a roll, a rubber seal is stretched over a flange, a wire carries a load, a fabric is hauled tight across a seam. The question a tensile strength testing machine answers is simple: how much pulling can this material take before it gives up, and how much does it stretch on the way?
Labs and factories use these machines to put numbers on that behaviour. The numbers are what tell you whether a new batch matches the last one, whether a new formulation is worth adopting, or why a customer's product snapped in the field.
What the machine actually does

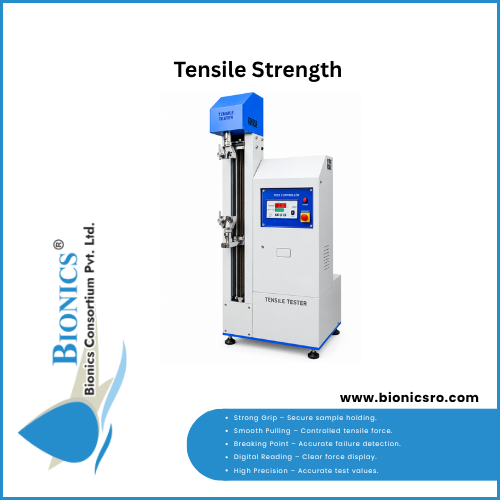

A tensile tester grips a specimen at both ends and pulls it apart at a set speed. While it pulls, it keeps track of two things: the force on the specimen, which comes from a load cell, and how far the specimen has stretched. The test carries on until the sample breaks or reaches a point defined by the test method.
Most of these instruments are built as a universal testing machine (UTM), meaning the same frame can be fitted with different grips, load cells and fixtures for different materials. Plot force against stretch and you get a curve, and that curve holds most of what you want to know about the material.
What you can read from the results
A single test gives you several figures, though which ones you get depends on the machine, software and method:
- Tensile strength. The highest stress the material carries before it fails, usually reported in MPa. Stress is simply force divided by the original cross-section area of the specimen.
- Elongation. How much the specimen stretches, shown as a percentage of its starting length. If a 50 mm gauge length stretches to 75 mm, that's 50% elongation.
- Breaking force. The load recorded at the moment of failure, typically in newtons or kilonewtons.
- Load and deformation. The raw pulling force and the change in dimensions as the test progresses, which together produce the curve mentioned above.
A stiff, brittle material and a soft, stretchy one can have similar strength figures and completely different curves. That's why looking at strength alone can be misleading.
How a test is run
The steps are fairly consistent, whatever the material:
- Prepare the specimen exactly as the test method requires. Shape, width, thickness and gauge length all affect the result, so they're normally fixed by the standard.
- Clamp it in the grips, straight and without pre-loading it.
- Set the test speed and start. The crosshead moves at a constant rate while the software records force and extension.
- Let the test run to break, or to whatever end point the method specifies.
- Read off the results and check where the specimen failed. A break right at the grip often means the result shouldn't be trusted.
Speed, grip type and specimen size all change the outcome, so comparisons only make sense when those are kept the same. Tests are usually run to a published standard such as ASTM D638 or ISO 527 for plastics, ASTM D412 for rubber, ASTM D882 for thin plastic films, ISO 6892 for metals, or ISO 13934 for textile fabrics. Which one applies depends on your material and your customer.
Who uses tensile testing, and for what
Plastics and polymers. Sheets, films and moulded parts are tested to compare grades and to check that production hasn't drifted. Films in particular show a wide range of behaviour between one supplier and another.
Rubber and elastomers. These materials are meant to stretch a long way and return, so elongation matters as much as strength. Testing helps in compound development and in checking batches.
Textiles. Fabrics and yarns are pulled to find out how much load they carry and how far they extend, which affects everything from garment seams to industrial webbing.
Paper and packaging. Paper, board and packaging films must survive being run through printing and converting machines, then handled and shipped. Tensile data shows which materials will hold up.
Metals and wire. With the right grips and a suitable load range, the same kind of machine can test wire, strip and small metal specimens where strength is critical.
Why quality control teams rely on it
QC is probably the most common reason to own a tensile tester. You take samples from each production batch, test them the same way each time, and compare the results with your specification.
When numbers move, the data gives you somewhere to start looking. A drop in strength or elongation might point to a change in raw material, a processing temperature that's slightly off, or moisture in the material. Without test data, those problems tend to be found by customers instead. With it, they show up on your own bench first.
Testing also helps R&D. When you're trying two formulations, or a thinner gauge to save cost, the tensile curves show you quickly what you've gained or lost.
What to look at before buying
Rather than starting with a price, start with what you'll actually test.
- Material and specimen type. A machine for thin films has different needs from one for metals or heavy industrial material.
- Load capacity. Choose a load cell so that your typical results fall comfortably inside its range, not at the extreme top or bottom. Using a large load cell on a fragile film gives poor resolution.
- Speed and travel. Some materials, especially rubber and films, stretch several times their original length, so the crosshead needs enough travel. The available speed range needs to match your test methods too.
- Grips and fixtures. Wedge, pneumatic, roller and film grips all suit different jobs. Buying a machine without the right grips is a common and avoidable mistake. If you'll test several material types, ask what additional fixtures are available.
- Accuracy and software. Check the accuracy class of force and extension measurement, and see whether the software reports the parameters you need and lets you export the data.
- Testing frequency. A lab running a few tests a week and a production line running dozens a day are shopping for different machines.
It also helps to think ahead. Your product range may grow, and it's easier to plan for extra grips and load cells now than to replace the machine later.
Working with Bionics Consortium
Bionics Consortium supplies laboratory and testing equipment for research, quality control and industrial use. If you're setting up a tensile testing capability or upgrading an older machine, our team can look at your material, specimen type, expected load range and test method with you, and suggest a configuration that fits.
Final thoughts
A tensile testing machine is a straightforward idea that pays off for a long time. Pull a specimen in a controlled way, record what happens, and you learn about strength, stretch and consistency in a form you can compare and act on. What makes it useful in practice is choosing the right capacity, grips and method for your own material, then testing the same way every time.
Looking for a tensile strength testing machine for your lab, factory or QC department? Send your enquiry to Bionics Consortium with your material and testing requirements, and we'll help you pick a suitable setup.
